HAMAMATSU L 9631X－RAY 光管在電池檢測的應用
設備通過X-RAY發生器發出X射線，穿透電池內部，由成像系統接收X射線并成像拍照，通過相關軟件對圖像進行處理并自動測量和判斷，在線全自動檢測，檢測產品良率、保障產品質量。確定良品和不良品，將不良品挑選出來，設備前后端可與產線對接。
X-RAY檢查作為重要的檢測手段為產品品質的提高起到了不可忽視的作用，同時X-Ray檢查智能設備往高度智能化、自動化、數字化方向發展，其應用領域越來越多，市場前景非常廣闊。
Hamamatsu L 9631微聚焦X射線源具有40~110 kV密封結構的x射線管，最小x射線焦點尺寸為15μm，最大輸出功率為50W，光束角度為62°。微聚焦X射線SOURCE是專門為X射線無損檢測而開發的.一個小的焦點可以防止X射線圖像的模糊，并提供一個銳利的放大圖像.提供了一個RS-232C接口作為stan。用于外部控制。即使在三維觀測期間，這些微聚焦X射線源也能產生清晰、銳利的放大X射線圖像.
SKU:
HAM L9631
Availability
none
Weight:
22.00 LBS
Width:
6.00 (in)
Height:
4.00 (in)
Depth:
4.00 (in)
Warranty:
Manufacturer's Warranty: The manufacturer warrants its products to be free of detects in materials and workmanship for the stated period from date of original purchase invoice. All warranties or merchant ability and fitness for any purpose and all other warranties, expressed or implied, except those expressly set forth herein, are deemed waived and excluded. Manufacturer's duty under the warranty is limited to replacement and/or repair of the defective part at their exclusive option. Seller shall not be liable for any expenses or damages incurred by the purchaser except as expressly set forth herein, and in no event shall seller or manufacturer be liable for any special, incidental or consequential damages of any kind. This warranty does not supersede any statutory rights that may be available in certain countries. The foregoing manufacturer's warranty of shall be voided, and of no force and effect if buyer has modified or damaged the product.

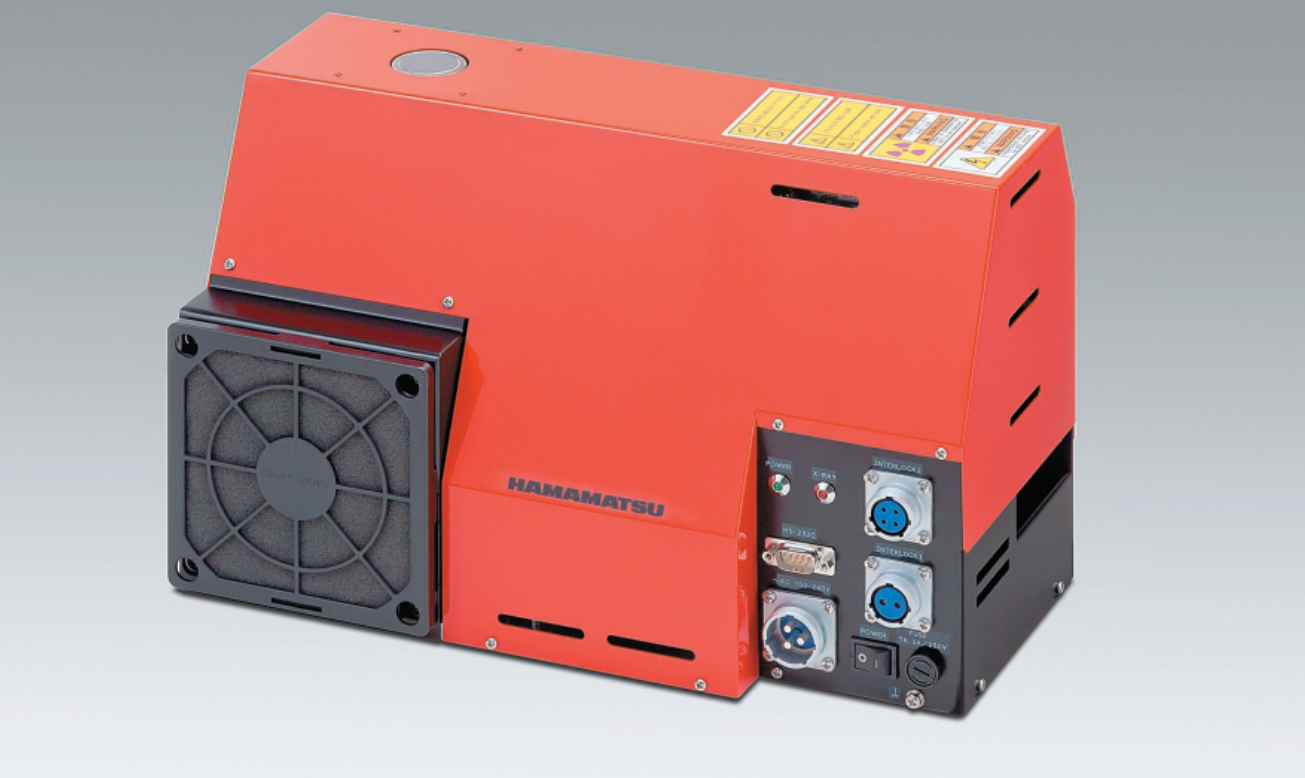

Hamamatsu L9631 Microfocus X-ray Source has has a 40-110KV sealed configuration x-ray tube with 15μm minimum x-ray focal spot size, 50W maximum output and a 62 degree beam angle. Microfocus X-ray sources are specifically developed for X-ray nondestructive inspection. A small focal point prevents blurring of X-ray images and delivers a sharp enlarged image. An RS-232C interface is provided as standard for external control. These microfocus X-ray sources also yield clear, sharp enlarged X-ray images even during 3D observation.
Non-destructive Inspection System
X-ray CT System
In-line X-ray Inspection System

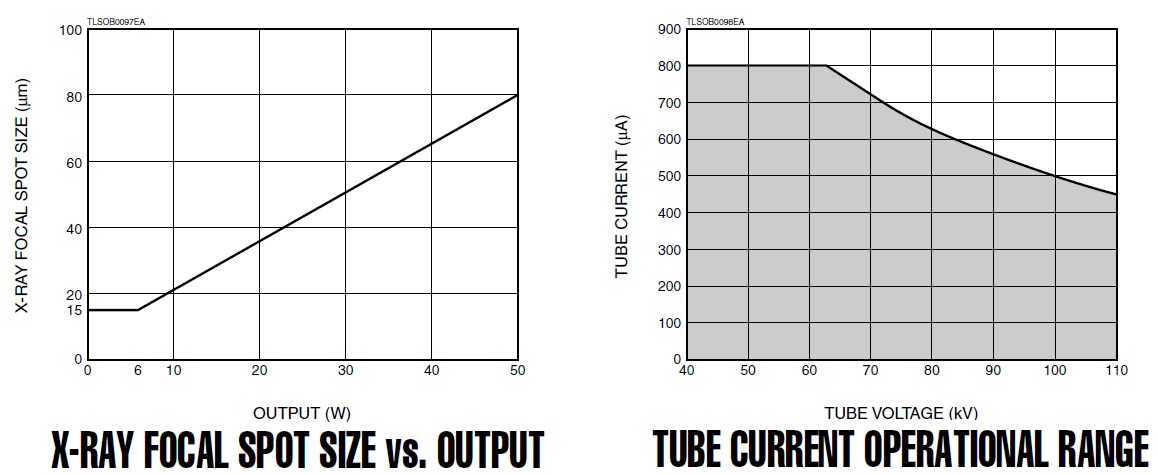

It allows continuous maximum output 800 μA (50 W),
High stability
Fully operable from external PC,
1 package of sealed type X-ray tube, high-voltage power supply and control function,
10 to 200 μA (8 W Max.) Tube current operational range.
